Lightweight and compact – short body length, minimal footprint.
High torque – up to 3× overload capability.
High speed – smooth operation up to 6,000 rpm.
Excellent stability and low cogging torque – enabled by a new electromagnetic design with a 10‑pole/12‑slot configuration.
High protection and long service life – stator coils are integrally potted (encapsulated).
Versatile compatibility – supports incremental and absolute magnetic encoders.
Cost‑effective – high power density for the price.
Rated voltage (D Series): 220 V – 380 V
Typical applications: collaborative robots and heavy‑load six‑axis robots.
D Series Servo Motors – Technical Specifications
| Parameter | SF60D02030M2015 | SF60D04030M2015 | SF80D07530M2015 |
|---|---|---|---|
| Drive voltage (V) | 220 | 220 | 220 |
| Rated power (kW) | 0.2 | 0.4 | 0.75 |
| Rated torque (N·m) | 0.64 | 1.27 | 2.39 |
| Maximum torque (N·m) | 1.92 | 3.9 | 7.2 |
| Rated speed (rpm) | 3000 | 3000 | 3000 |
| Maximum speed (rpm) | 5000 | 5000 | 5000 |
| Rated current (A) | 1.7 | 2.9 | 4.3 |
| Rotor inertia (kg·m²) | 0.183×10⁻⁴ | 0.34×10⁻⁴ | 0.86×10⁻⁴ |
| Torque coefficient (N·m/A) | 0.38 | 0.43 | 0.56 |
| Electrical time constant (ms) | 1.34 | 1.95 | 3.0 |
| Line resistance (Ω) | 5.45 | 3.3 | 2.1 |
| Line inductance (mH) | 7.35 | 6.44 | 6.31 |
| Line back‑EMF constant (V/krpm) | 23 | 31 | 42 |
| Pole pairs | 5 | 5 | 5 |
Common Specifications (All Models)
| Parameter | Value |
|---|---|
| Encoder resolution | 2500 PPR, absolute type |
| Insulation class | Class F |
| Protection class (ingress) | IP54 |
| Ambient temperature range | 20 °C to 50 °C |
| Ambient humidity | <90 % RH (non‑condensing) |
Physical Dimensions and Weights (by Model)
| Parameter | SF60D02030M2015 | SF60D04030M2015 | SF80D07530M2015 |
|---|---|---|---|
| Motor length (mm) | 81 | 98 | 103 |
| Motor weight (kg) | 1.0 | 1.2 | 2.2 |
| Weight with brake (kg) | 1.3 | 1.5 | 2.5 |
Connector Pin Assignments
1. Winding Socket
| Signal | Socket Pin Number |
|---|---|
| U | 1 |
| V | 2 |
| W | 3 |
| PE (Protective Earth) | 4 |
2. Absolute Encoder Socket
(7‑pin configuration)
| Signal | Male Pin Number |
|---|---|
| PE | 1 |
| 5V | 2 |
| 0V | 3 |
| SD+ | 4 |
| SD− | 5 |
| VB+ | 6 |
| VB− | 7 |
3. 15‑Wire Encoder Socket
(15‑pin configuration)
| Signal | Male Pin Number |
|---|---|
| Shield | 1 |
| 5V | 2 |
| 0V | 3 |
| + | 4 |
| Z− | 5 |
| U+ | 6 |
| Z+ | 7 |
| U− | 8 |
| A+ | 9 |
| V+ | 10 |
| W+ | 11 |
| V− | 12 |
| A− | 13 |
| B− | 14 |
| W− | 15 |

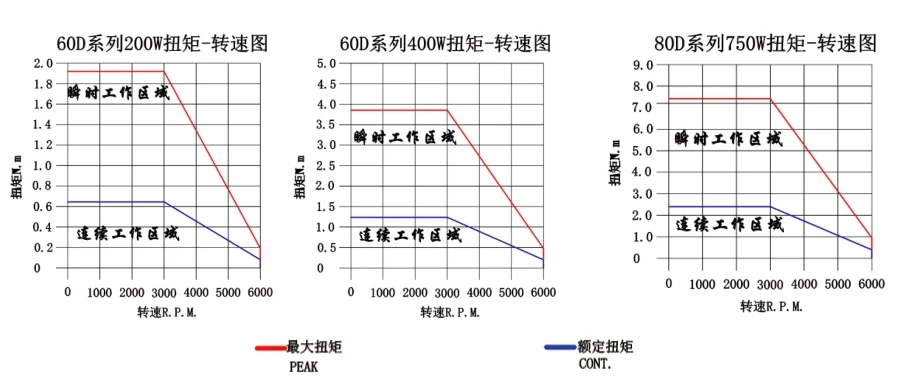

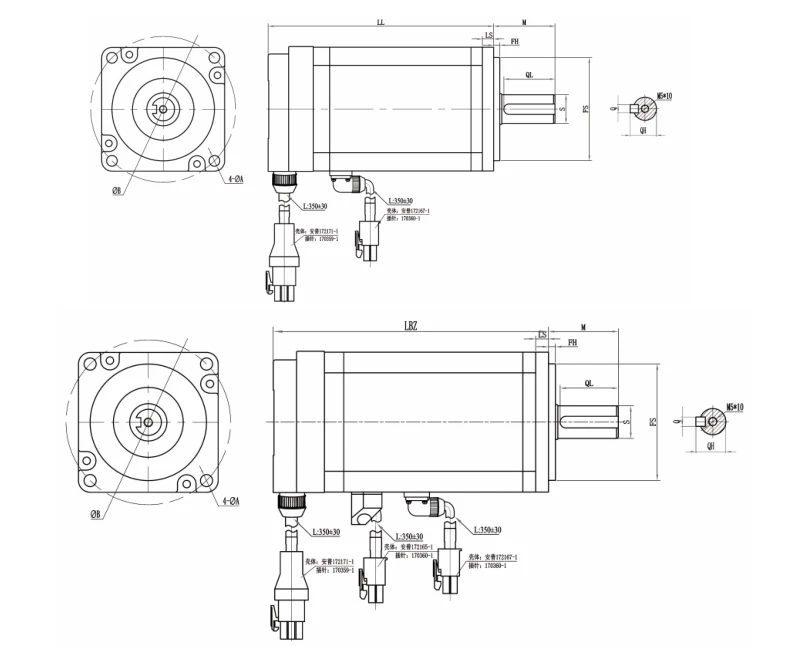

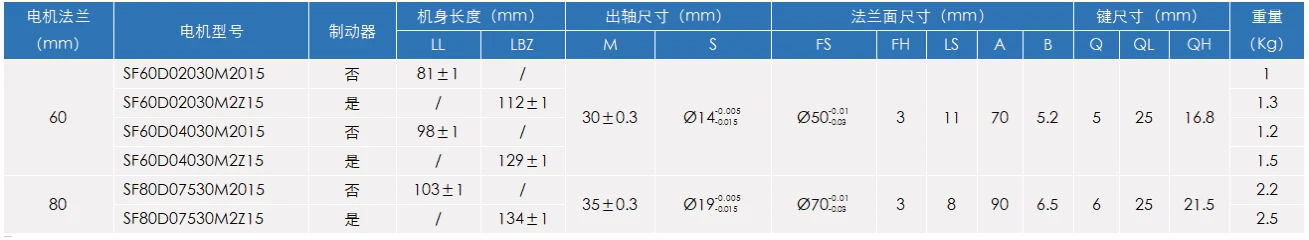

Mounting dimensions (mm)
The above dimensions are standard mounting sizes. Alterations can be made to meet specific customer requirements.
Important: Never apply impact or shock to the motor shaft – doing so can cause irreversible damage to the encoder at the rear end of the shaft.
