Lightweight and compact – short body length, minimal footprint.
High torque – up to 3× overload capability.
High speed – smooth operation up to 6,000 rpm.
Excellent stability and low cogging torque – enabled by a new electromagnetic design with a 10‑pole/12‑slot configuration.
High protection and long service life – stator coils are integrally potted (encapsulated).
Versatile compatibility – supports incremental and absolute magnetic encoders.
Cost‑effective – high power density for the price.
Rated voltage (D Series): 220 V – 380 V
Typical applications: collaborative robots and heavy‑load six‑axis robots.
S‑Series 130 Frame Permanent Magnet Servo Motors – Technical Specifications
| Parameter | SF130S13025C2014 | SF130S20025C2014 | SF130S15015C2014 | SF130S23015C2014 |
|---|---|---|---|---|
| Drive voltage (V) | 220 (380 V optional) | 220 (380 V optional) | 220 (380 V optional) | 220 (380 V optional) |
| Rated power (kW) | 1.3 | 2.0 | 1.5 | 2.3 |
| Rated torque (N·m) | 5.0 | 7.7 | 10.0 | 15.0 |
| Maximum torque (N·m) | 15.0 | 21.0 | 30.0 | 45.0 |
| Rated speed (rpm) | 2500 | 2500 | 1500 | 1500 |
| Maximum speed (rpm) | 3000 | 3000 | 2000 | 2000 |
| Rated current (A) | 5.5 | 9.0 | 9.5 | 11.5 |
| Rotor inertia (kg·m²) | 15.8×10⁻⁴ | 20.4×10⁻⁴ | 26.4×10⁻⁴ | 33.6×10⁻⁴ |
| Torque coefficient (N·m/A) | 0.9 | 0.9 | 1.1 | 1.4 |
| Electrical time constant (ms) | 4.8 | 5.2 | 4.9 | 5.6 |
| Line resistance (Ω) | 1.25 | 0.62 | 0.85 | 0.60 |
| Line inductance (mH) | 6.0 | 3.2 | 4.2 | 3.4 |
| Line back‑EMF constant (V/krpm) | 60.7 | 55.0 | 72.0 | 82.0 |
S‑Series 130 Frame Servo Motors – Supplementary Specifications
Common Parameters (All Models)
| Parameter | Value |
|---|---|
| Pole pairs | 4 (5 pole pairs optional) |
| Encoder resolution | 2500 PPR, absolute type |
| Insulation class | Class F |
| Protection class (ingress) | IP65 |
| Ambient temperature range | –20 °C to +50 °C |
| Ambient humidity | <90 % RH (non‑condensing) |

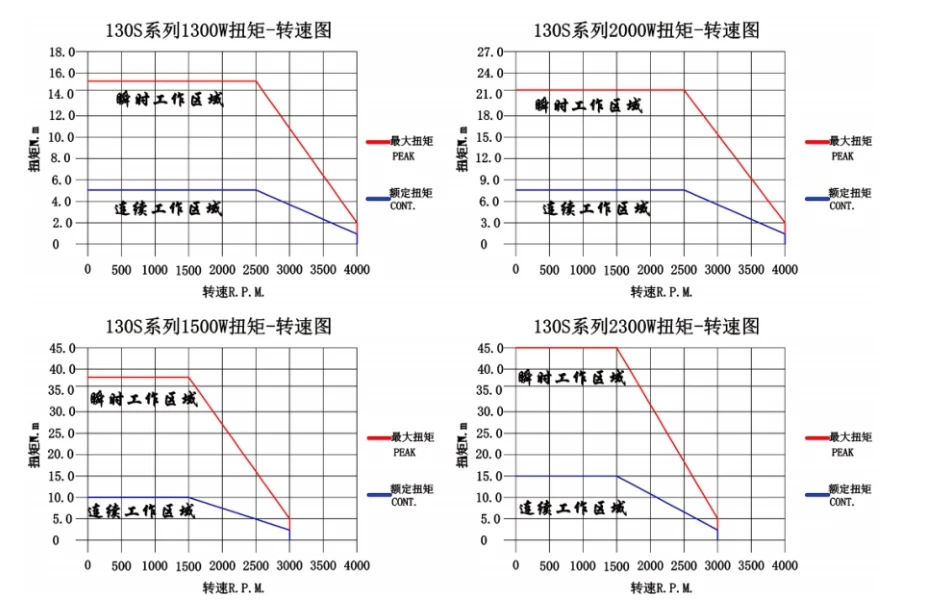

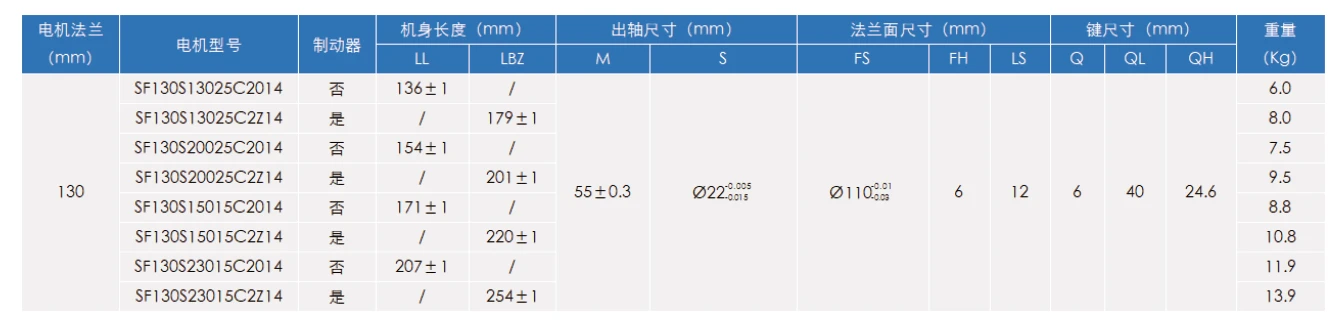

Physical Dimensions and Weights (by Model)
The following values correspond to the four models in the order shown in the main specification table.
| Model | Motor Length (mm) | Motor Weight (kg) | Weight with Brake (kg) |
|---|---|---|---|
| SF130S13025C2014 | 136 | 6.0 | 8.0 |
| SF130S20025C2014 | 154 | 7.5 | 9.5 |
| SF130S15015C2014 | 171 | 8.8 | 10.8 |
| SF130S23015C2014 | 207 | 11.9 | 13.9 |
Connector Pin Assignments
1. Winding Connector
| Signal | Socket Pin Number |
|---|---|
| PE (Protective Earth) | 1 |
| U | 2 |
| V | 3 |
| W | 4 |
2. Absolute Encoder Connector (7‑pin)
| Signal | Male Pin Number |
|---|---|
| PE | 1 |
| 5 V | 2 |
| 0 V | 3 |
| SD+ | 4 |
| SD− | 5 |
| VB+ | 6 |
| VB− | 7 |
3. 15‑Wire Encoder Connector (15‑pin)
| Signal | Male Pin Number |
|---|---|
| Shield | 1 |
| 5 V | 2 |
| 0 V | 3 |
| B+ | 4 |
| Z− | 5 |
| U+ | 6 |
| Z+ | 7 |
| U− | 8 |
| A+ | 9 |
| V+ | 10 |
| W+ | 11 |
| V− | 12 |
| A− | 13 |
| B− | 14 |
| W− | 15 |

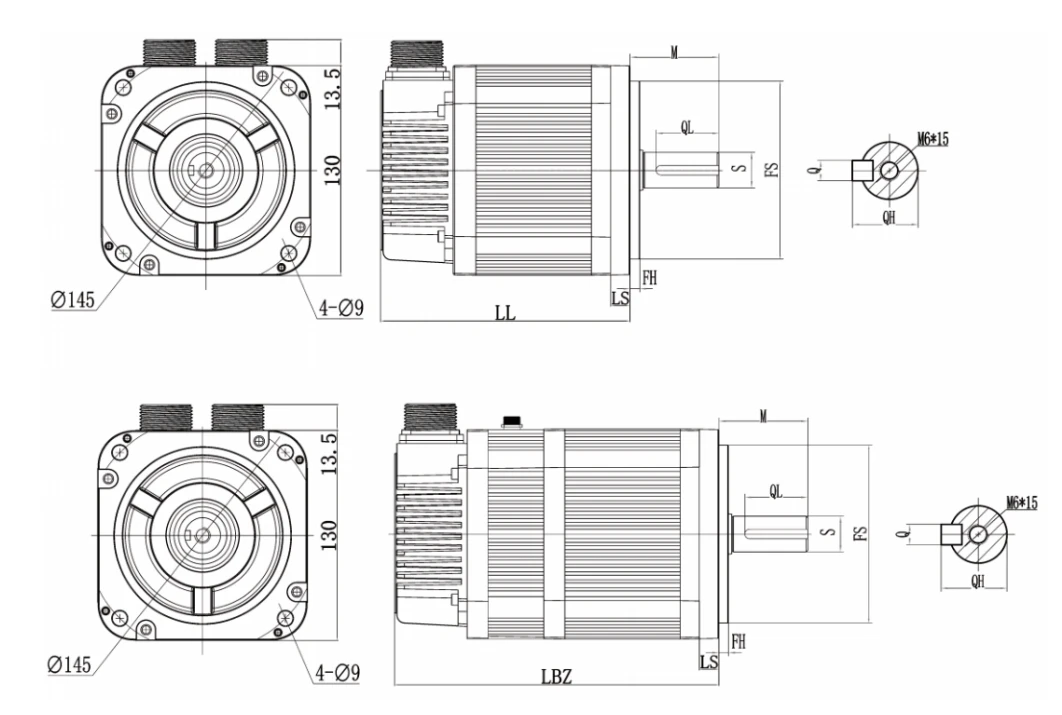

Mounting dimensions (mm)
The above dimensions are standard mounting sizes. Alterations can be made to meet specific customer requirements.
Important: Never apply impact or shock to the motor shaft – doing so can cause irreversible damage to the encoder at the rear end of the shaft.
