A‑Series 60 Permanent Magnet Servo Motor

Low losses and low electromagnetic noise – coils are neatly and tightly wound for optimal performance.

High protection and long service life – the stator injection‑molding process provides a withstand voltage of up to 3000 V without breakdown, faster heat dissipation, and an ingress protection rating of up to IP67.

Greater flexibility – low inertia makes the motors ideal for frequent high‑speed forward/reverse start‑up under load.

Smooth operation – the integrated stator welding process ensures a robust and rigid structure.

High encoder compatibility – supports a wide range of encoder types, including optical incremental, magnetic incremental, absolute, and resolver.

Series Variants

A (High‑Voltage) Series

Rated voltage: 220 V – 380 V

Typical applications: SCARA and DELTA robots

B (Low‑Voltage) Series

Rated voltage: 48 V

Typical applications: AGVs (Automated Guided Vehicles) and medical robots

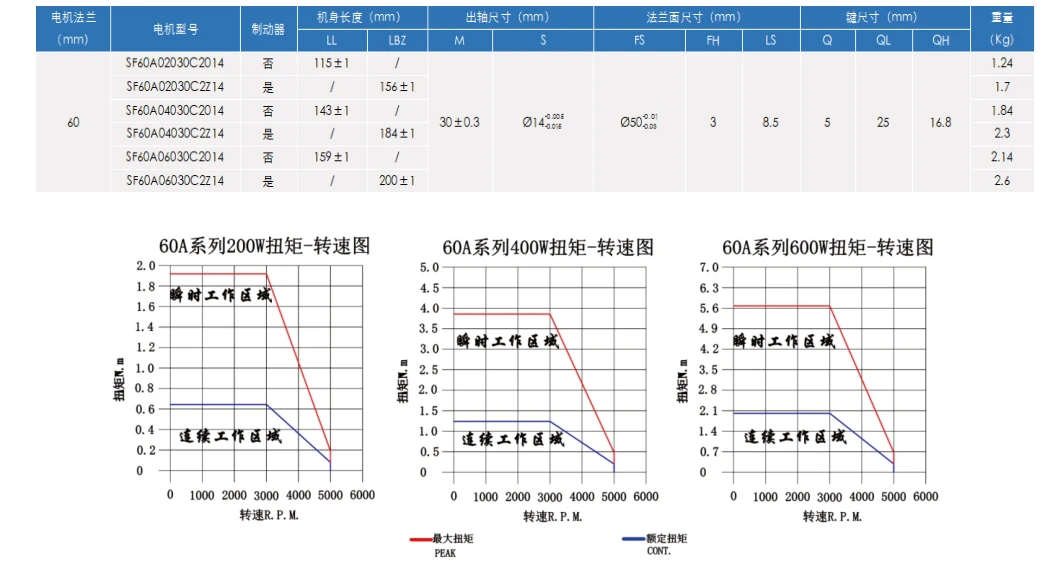

A‑Series 60 Frame Servo Motors – Technical Specifications

Parameter	SF60A02030C2014	SF60A04030C2014	SF60A06030C2014
Drive voltage (V)	220	220	220
Rated power (kW)	0.2	0.4	0.6
Rated torque (N·m)	0.64	1.27	1.92
Maximum torque (N·m)	1.92	3.81	5.8
Rated speed (rpm)	3000 (max. 5000)	3000 (max. 5000)	3000 (max. 5000)
Rated current (A)	1.1	2.3	3.8
Rotor inertia (kg·m²)	0.264×10⁻⁴	0.407×10⁻⁴	0.526×10⁻⁴
Torque coefficient (N·m/A)	0.58	0.55	0.5
Electrical time constant (ms)	4.6	4.5	4.7
Line resistance (Ω)	9.2	3.0	3.0
Line inductance (mH)	43	13.5	14.2
Line back‑EMF constant (V/krpm)	32	32	36

Supplementary Specifications – A‑Series 60 Frame Servo Motors

1. Common Parameters

Parameter	Value
Pole pairs	4 (5 optional)
Encoder resolution	2500 PPR, absolute type
Insulation class	Class F
Protection class (ingress)	IP65
Ambient temperature range	–20 °C to +50 °C
Ambient humidity	<90 % RH (non‑condensing)
